GNS-1441

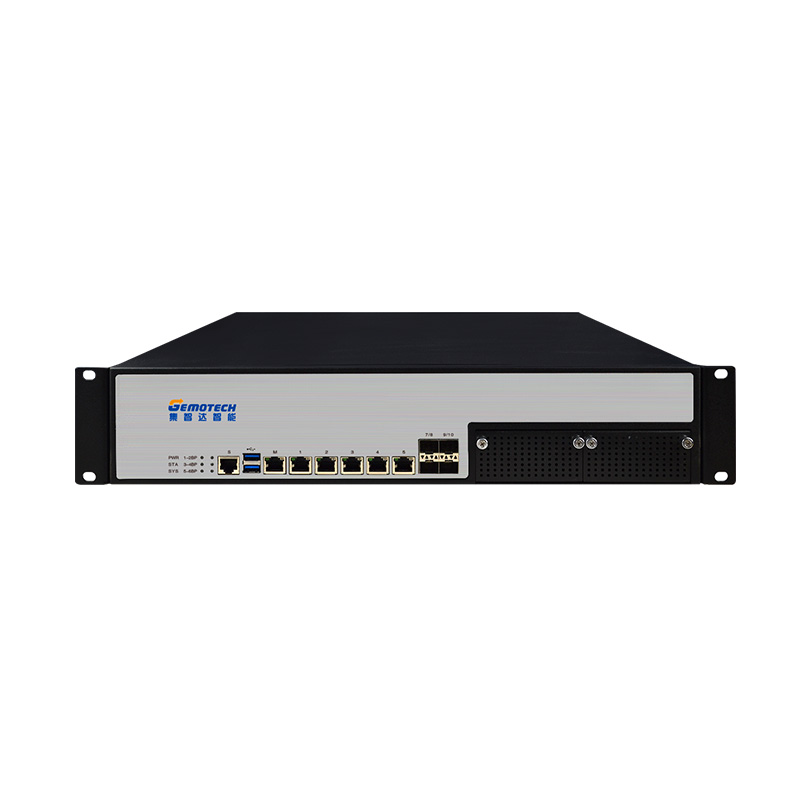

基于海光3400系列CPU、带IPMI接口的6电4光2扩的1U/2U网安平台

产品型录

产品介绍
产品规格
档案下载

产品概述
新一代高性能国产化x86处理器，支持多线程(SMT),可无缝应用到生态链中。GNS-1441兼容海光四号CPU系列，平台集成6个千兆以太网电口和4个千兆以太网光口，3组Bypass,网卡芯片采用国产化网讯芯片，进一步提高自主可控。平台可支持256G内存，3个SATA3.0接口，1个CF卡，1个Mini PCle接口，1个M2接口，平台支持2个PCle 8x前置扩展插槽，内置2个USB3.0 Pinheader,1个USB2.0插针，1个内置串口等。

主要特点
◆国产化X86平台支持海光3490CPU
◆计算、访存、能效比、数据库等测试性能突出，高性价比平台
◆平台高计算性能、高内存带宽、高I/O带宽，应用广泛，移植性好，兼容性好
◆完善的生态链，可支持国产或开源系统，windows、其麟、普华、凝思、方德、CentOS、ubuntu等

主板型号	GNS-2441
处理器系列	海光3系4号系列CPU
内存	2通道，4条DDR5 UDIMM 内存插槽，可支持达256G
扩展	2 个USB 3.0，板内预留双排插针 1 个PCIe Gen4 8x 的内置扩展插槽
前面板 I/O接口	PWR/SYS/STA 灯，3 组Bypass灯 1 个RJ45 串口 2 个USB2.0 接口 6 个RJ45 千兆网口，含1个IPMI 管理口 4 个SFP 千兆光口 2 个前置网络扩展卡接口 2 个PCIe Gen4 8x 前置网络扩展卡接口
后面板 I/O接口	1 个电源开关按键 1/2 个外接电源输入接口
以太网口	板载 6 个RJ45 千兆电口，带有3 组bypass 功能板载4 个SFP 千兆光口网卡芯片：网迅WX1860A2/WX1860/A4 支持 10/100/1000MB
存储	3 个7-pin SATA3.0 接口，1 个mSATA，标准接口定
电源	单电，冗电
操作系统	可支持开源操作系统如 centos，ubantu，redhat 等，也可支持国产化操作系统，如凝思
工作环境	工作温度 : 0℃ ~ 40℃ 存储温度 : -40℃ ~ 70℃ 相对湿度 : 10%~90%( 无凝结 )
机箱尺寸	560mm x 440mm x 89mm（长 x 宽 x 高）
