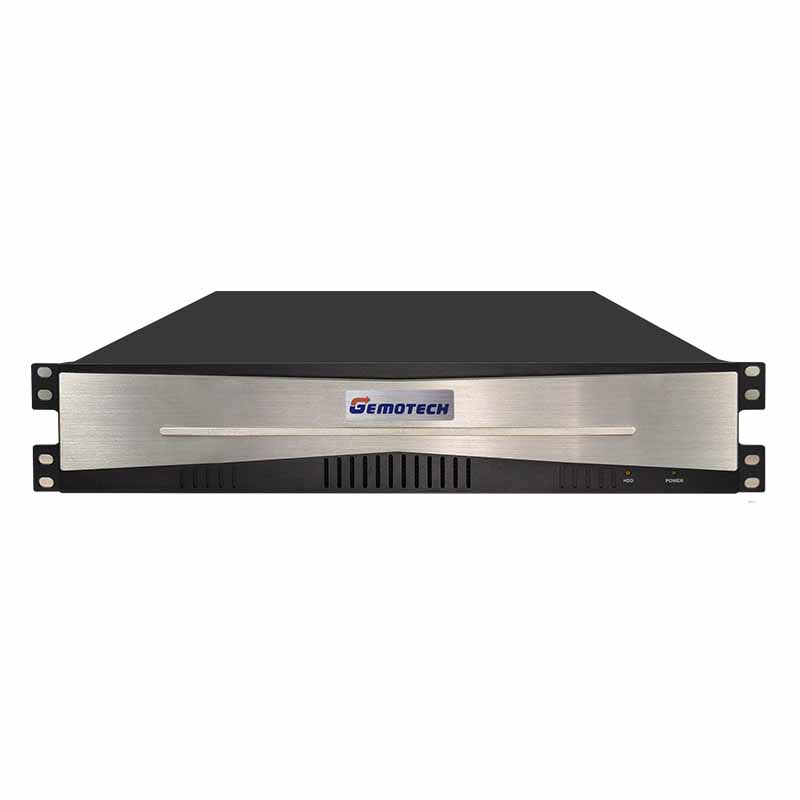

GNS-1415

基于国产x86架构 3280 CPU，支持双路、6个内置扩展插槽的2U网络安全计算机

产品型录

产品介绍
产品规格
档案下载

基于海光二号3280双路CPU，平台集成2个千兆 RJ45管理网口，1个RJ45 BMC管理网口 ,支持内置6个PCIe扩展。移植简单，应用广泛；高安全性，内嵌安全处理器，采用国密算法。

主要特点：

◆ 国产化x86平台，支持双路海光二号3280 CPU

◆ 高主频，可支持共16核

◆ CPU集成安全芯片，可满足等保2.0

◆ 支持内置多达 6 个 PCIe 插槽，不同带宽，多样选择

◆ 8条DDR4/RDIMM/UDIMM ECC/no ECC,内存容量可达512GB

◆ 板载BMC远程管理功能

◆ 丰富的I/O接口，可灵活选择和搭配

CPU	国产X86架构处理器 3280
内存	8*Slot RDIMM/UDIMM ECC/no ECC 可支持到 512GB 支持双通道
PCIe扩展	2PCIe 3.0 ×16（同时插两块卡为 x8） 1PCIe 3.0 ×8（x4 in x8 Slot） 3*PCIe 3.0 ×4（x1 in x4 Slot）
内部接口	2 个 SATA 3.0，1 个 mini SAS 接口 2 个 PCIe 3.0 ×16 1 个 PCIe 3.0 ×8（x4 in x8 Slot） 3 个 PCIe 3.0 ×4（x1 in x4 Slot） 8DIMM Slots, 2 Channels Per CPU 2 个 SYS_FAN，2 个 CPU_FAN 24Pin +8Pin+8Pin 1 个 PMBUS 接口 1 个 CLR_CMOS，1 个 JGUI1，1 个 JAT_ATX
面板 I/O 接口	2 个千兆 RJ45 网口 1 个 RJ45 千兆 BMC 管理网口 4 个 USB3.0 1 个 VGA 口 3* 音频孔
存储	2 个 SATA3.0 接口 1 个 mini SAS 接口
显示	1*VGA
电源接口	电源输入550W冗余电源
尺寸	560mmx440mmx89mm( 长 x 宽 x 高 )
