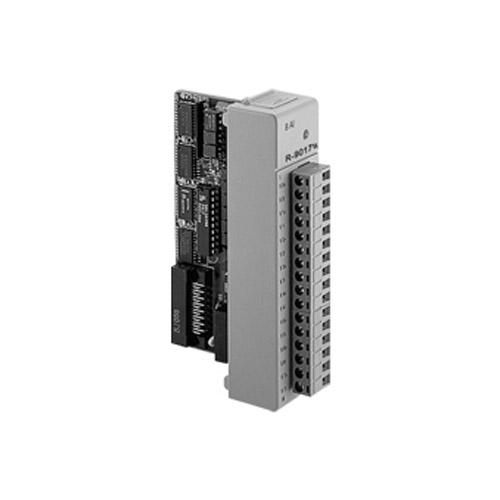

R-9017H

8路模拟量输入模块

主要特点

- 通道 8路差分
- 有效分辨率 12 位，外加符号位
- 输入类型 mV,V, mA

产品型录

产品介绍
产品规格
档案下载

8路模拟量输入模块

通道	8路差分
有效分辨率	12 位，外加符号位
输入类型	mV，V， mA
输入范围	±200 mV， ±500mV，±1V， ±5V， ±10V 0～+500 mV，0～+1V， 0～+5 V，，0～+10 V，0～20 mA，4～20 mA
隔离电压	3000VDC
采样速率	RemoDAQ-9×10 / 9×20 100点/秒 RemoDAQ-9×21 8000点/秒
输入阻抗	20MΩ(电压输入)；125Ω(电流输入)
带宽	1KHz
信号输入带宽	电压或电流输入均为1KHz
精度	±0.1%
CMR@50/60Hz	92db
功耗	1.75W(典型) 2.2W
	每个通道均可设定不同的量程

注意：任意两个输入端之间的电压不可超过±15V

订货信息
- R-9017H 8路模拟量输入模块-mV，V，mA
