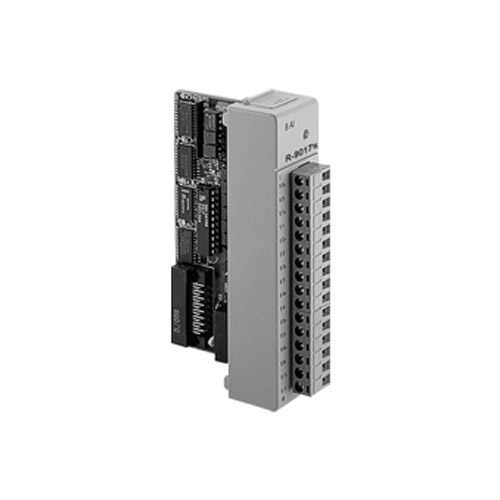

R-9017UH

8路模拟量输入模块

主要特点

- 通道 8路差分
- 有效分辨率 12 位
- 输入类型 mV, V, mA
- 输入范围 ±10V,0～+10 V，0～20 mA，4～20 mA
- 隔离电压 3000VDC

产品型录

产品介绍
产品规格
档案下载

8路模拟量输入模块

通道	8路差分
有效分辨率	12 位
积分非线性	±1LSB
差分非线性	±1LSB
低通或高通滤波器	用户配置
输入类型	mV，V， mA
输入范围	±10V，0～+10 V，0～20 mA，4～20 mA
隔离电压	3000VDC
采样速率	200K(单个通道)；35K(8通道)
输入阻抗	20MΩ(电压输入)；120Ω(电流输入)
带宽	200KHz
信号输入带宽	电压或电流输入均为200KHz
精度	±0.1%
CMR@50/60Hz	92db
功耗	1.75W(典型) 2.2W
	每个通道均可设定不同的量程

注意：任意两个输入端之间的电压不可超过±15V
