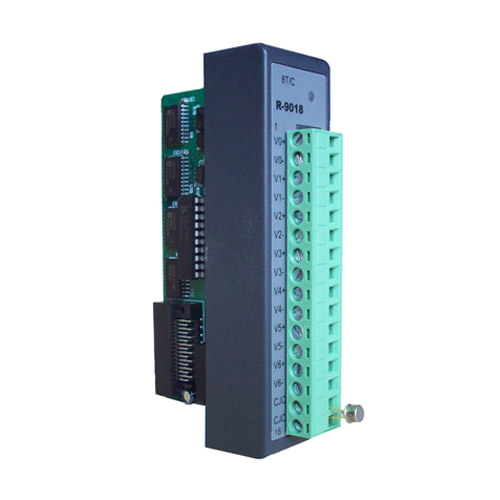

R-9018

7路热电偶输入模块

主要特点

- 通道 7路差分
- 有效分辨率 16 位
- 输入类型 mV,V,mA,热电偶
- 输入范围 ±15mV, ±50mV,±100mV, ±500mV，±1V, ±2.5V, ±20 mA
- 隔离电压 3000VDC
- 故障和过压保护最大承受电压±35V
- 采样速率 10采样点/秒(总共)
- 输入阻抗 2MΩ

产品型录

产品介绍
产品规格
档案下载

7路热电偶输入模块

通道	7路差分
有效分辨率	16位
输入类型	mV，V，mA，热电偶
输入范围	±15mV， ±50mV，±100mV， ±500mV，±1V， ±2.5V， ±20 mA
热电偶类型与温度范围	J 0° ～ 760℃ K 0° ～ 1370℃ T -100° ～ 400℃ E 0° ～ 1000℃ R 500° ～ 1750℃ S 500° ～ 1750℃ B 500° ～ 1800℃
隔离电压	3000VDC
故障和过压保护	承受电压±35V
采样速率	10采样点/秒(总共)
输入阻抗	2MΩ
带宽	13.1 Hz @ 50 Hz， 15.72Hz @ 60 Hz
精度	±0.1%
零飘移	±0.3 mV /℃
满量程漂移	±25PPM/℃
CMR@50/60Hz	92db
功耗	0.5W(典型) 0.63W
	每个通道均可设定不同的量程

订货信息
- R-9018 7路热电偶输入模块 -mV，V， mA 热电偶
