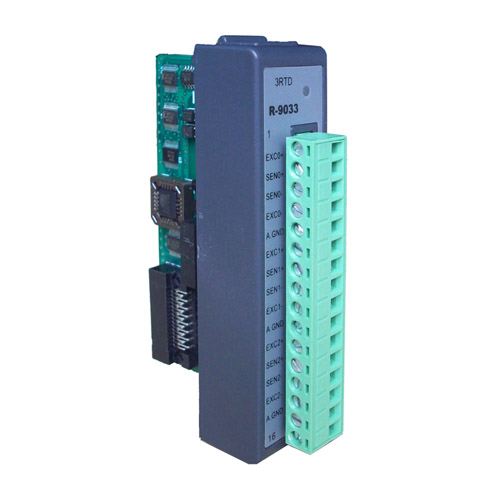

R-9033

3路热电阻输入模块

主要特点

- 通道 3
- 有效分辨率 16 位
- 输入类型 PT100 或 Ni RTD
- 隔离电压 3000VDC
- 采样速率 10采样点/秒
- 输入阻抗 2MΩ

产品型录

产品介绍
产品规格
档案下载

3路热电阻输入模块

通道	3
有效分辨率	16 位
输入类型	PT100 或 Ni RTD
热电阻类型和温度范围	IEC RTD 100Ω	JIS RTD 100Ω	N 1 RTD
	Pt - 100℃到 +100℃ α＝0.00385 Pt - 0℃到 +100℃ α＝0.00385 Pt - 0℃到 +200℃ α＝0.00385 Pt - 0℃到 +600℃ α＝0.00385	Pt - 100℃到 +100℃ α＝0.00392 Pt - 0℃到 +100℃ α＝0.00392 Pt - 0℃到 +200℃ α＝0.00392 Pt - 0℃到 +600℃ α＝0.00392	NI -80℃到 +100℃ NI 0℃到 +100℃
隔离电压	3000VDC
采样速率	10采样点/秒(总共)
输入阻抗	2MΩ
带宽	13.1 Hz @ 50 Hz，15.72Hz @ 60 Hz
输入接线方式	2线 3线或 4线制
精度	±0.1%
零飘移	±0.015℃/℃
满量程漂移	±0.01℃/℃
CMR@50/60Hz	150db
CMR@50/60Hz	100db
功耗	0．85W 1．10W

订货信息
- R-9033 3路热电阻输入模块

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
