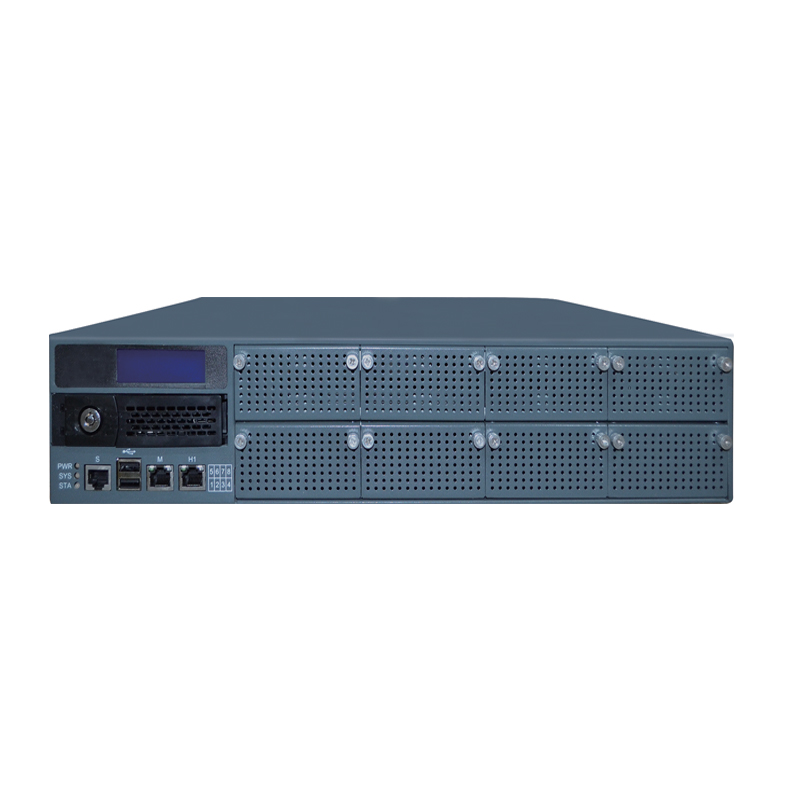

GNS-1100-1

主要特点

◆ Intel 5th Gen XEON / 6th 7th Core TM /Pentium 处理器

◆ 4-8 个前置扩展插槽，可配合网卡模块进行灵活搭配

◆ 内置 2 个 PCIe x8 插槽，可插 RAID 卡

◆ 支持双通道 DDR4-2400 ECC /Non-ECC DIMM 内存，4 个插槽可支持到128GB 容量

产品型录

产品介绍
产品规格
档案下载

产品概述

Intel C236 芯片平台，支持 DDR4 2400MHz 内存，丰富的 I/O 扩展。

平台集成了 2 个千兆以太网管理口和 4~8 个前置扩展网卡接口，内置 2 个 PCIe x8 扩展插槽，可插 RAID 卡做磁盘阵列或客户卡，双通道 DDR4-2400 ECC/Non-ECC DIMM 插槽，可支持到 128GB 内存，2 个 SATA 3.0 接口，其中 1 个支持前置可插拔硬盘，1 个 MSATA，1 个 CF 卡插槽，1 个 LPC 接口可支持 TPM2.0 卡，1 个 VGA 接口，2 个内置 USB 3.0 Pinheader，2 个 USB2.0，1 个 RJ45 CONSOLE 调试口，1 个内置串口，1 个液晶屏等。

主要特点

◆ Intel 5th Gen XEON / 6th 7th Core TM /Pentium 处理器

◆ 4-8 个前置扩展插槽，可配合网卡模块进行灵活搭配

◆ 内置 2 个 PCIe x8 插槽，可插 RAID 卡

◆ 支持双通道 DDR4-2400 ECC /Non-ECC DIMM 内存

订购信息

订货号

裸机型号

基本配置

可选配件

随机配件包

10NS1100100XA

GNS-1100-

1-8E

Intel 5th Gen XEON / 6th 7th Core / Pentium / 2 电口 /前置 8 个网卡扩展插槽 / 2 个 SATA / 冗电 350W

CPU / 内存 / 硬盘 / 扩展网卡/ 电子盘/ CF卡/ 单电

耳片 / 上架镙钉 / 电源线 / 用户说明书 / 导轨

10NS1100101XA

GNS-1100-1

-4E

Intel 5th Gen XEON / 6th 7th Core / Pentium / 2 电口 /前置 4 个网卡扩展插槽 / 2 个 SATA / 单电 600W

CPU / 内存 / 硬盘 / 扩展网卡/ 电子盘/ CF卡/ 冗电

耳片 / 上架镙钉 / 电源线 / 用户说明书 / 导轨

主板型号	GNS-2100-1
处理器系统	Intel 5th Gen XEON / 6th 7th Core TM /Pentium 处理器
内存	4 条 DIMM Socket 支持 DDR4-2400 ECC/Non-ECC 内存，可支持到128GB
扩展	2 个 USB 3.0，板内预留双排插针
	1 个 PCIe x8 的内置扩展插槽，可插客户卡或 RAID 卡
	1 个 RS232 Pinheader
前面板 I/O 接口	PWR/SYS/STA 灯
	1 个 RJ45 串口
	2 个 USB2.0 接口
	2 个 RJ45 管理网口
	4-8 个前置网络扩展模块接口

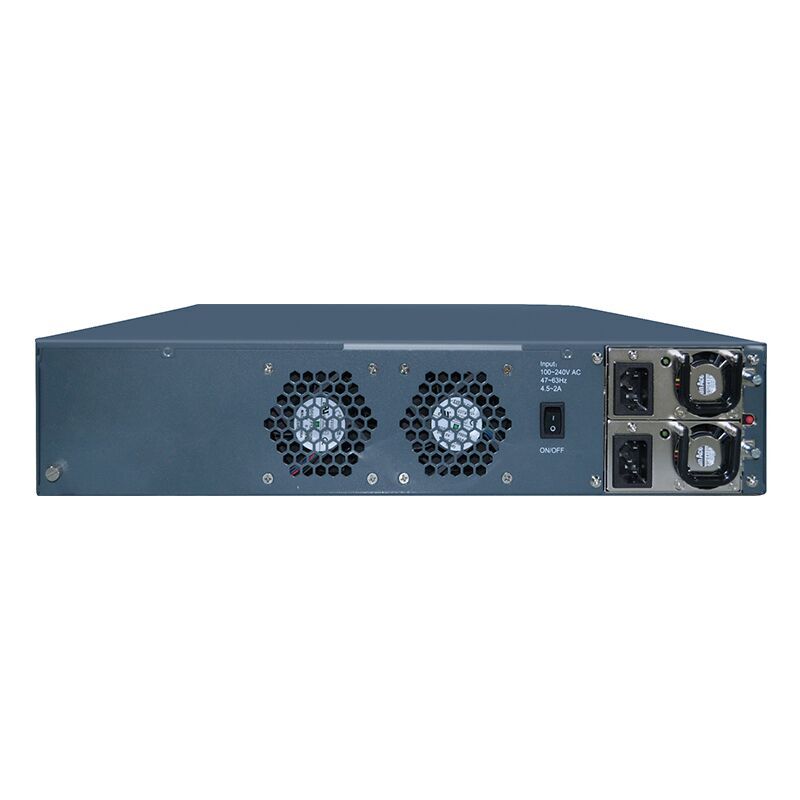

后面板 I/O 接口	1 个电源开关按键
后面板 I/O 接口	1/2 个外接电源输入接口
以太网口	板载 2 个 RJ45 千兆管理网口
以太网口	网卡芯片：Intel i210-AT 支持 10/100/1000MB
存储	预留 1 个 mSATA 接口
	1 个 CF 卡接口
	2 个 SATA 接口，支持 2.5 或 3.5 硬盘
电源	支持单电 250W，冗电 450W
操作系统	Windows、redhat、CentOS、ubuntu 等开源 Linux
工作环境	工作温度 0℃ ~ 40℃
	存储温度 -40℃ ~ 70℃
	0% ~ 90% 相对湿度，无凝露
外观尺寸	560mm x 430mm x 44mm（长x 宽 x 高）
