GNS-1170

基于Intel C621平台，支持双路Intel至强处理器，8扩2U网络安全整机

产品型录

产品介绍
产品规格
档案下载

产品概述

采用 Intel 至强可扩展处理器平台和 C621 芯片组构建，可支持 4-8 个扩展网卡模块，具有灵活性和扩展性。整机平台可以支持 2666 MHz 的 DDR4、低延迟和可靠性，并增强了数据密集型应用程序的性能。网络接口采用全模块化设计，内部各种接口均采用接插件处理，实现无线连接，板载 IPMI 远程智能管理功能、IntelQuickAssist Technology 加速芯片，支持软硬 RAID 方案，满足设备远程管理、网络加速、存储等需求。定位于高端网络安全和存储硬件平台，具有运算力强，数据交换快、扩展灵活等特点。

主要特点

◆ Intel C621 平台，8 扩展 / 4 扩展 ; 4 硬盘外置可插拔

◆ 双 Intel Xeon SP 第一代 + 第二代 Intel 至强可扩展处理器

◆ 支持可达 640GB 的 DDR4 2133/ 2400/2666 ECC & REG 内存

◆ 板载 SATA x 6（其中一个免工具 / 易拆卸 SSD）

◆ CRPS 电源，支持电源状态监控

◆ 支持 BMC IPMI 2.0 和带外管理，可选 TPM 1.2/2.0 模块

◆ 支持 Intel QAS ready

◆ 机箱内部连接全部为接插件处理；无线连接

处理器系统

双 Intel Xeon SP 处理器

支持 10.4 GT/s UPI 连接速度

Intel C621

1 个 PCIe x8 扩展槽（上层转接板上）

LAN

可抽取式 LAN 模块

支持 Intel i350/ Intel XL710 Copper/Fiber ports

支持 10/100/1000/10G/25G/40G/100G 连接速度

LAN Bypass

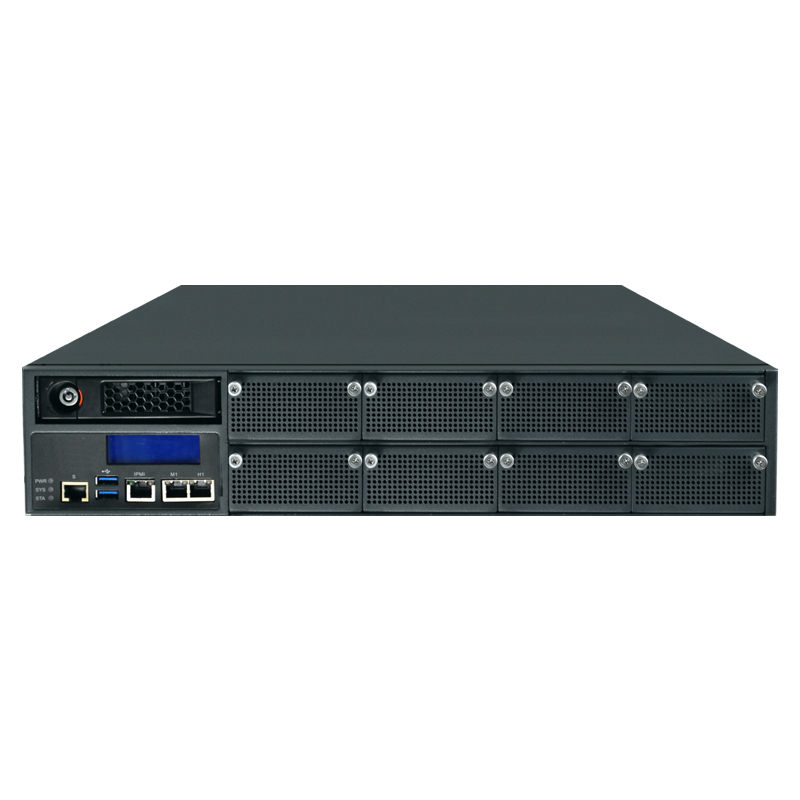

I/O 前面板接口

支持 2 x 20 个字符 LCD 模块，SIO 接口

P 电源状态 /HDD 状态 /GPIO 状态 / 系统故障状态LED

4 个 3.5”HDD 可抽取式托架

8 x LAN 模块托盘

2 x USB 2.0 接口

1 x RJ45 类型串口

2 x 管理网络接口（管理 +IPMI）

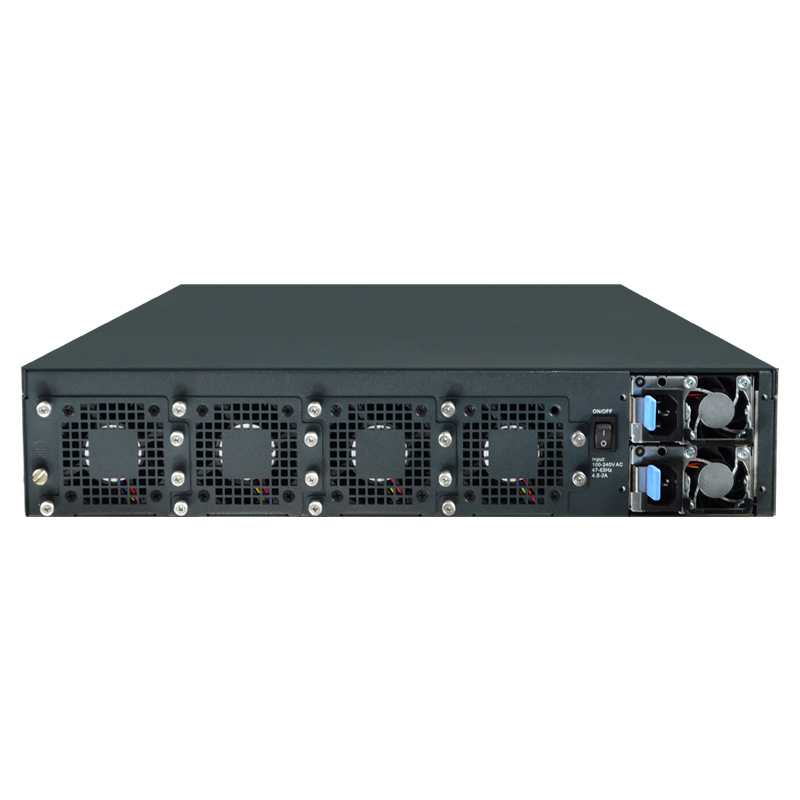

I/O 后面板接口

4 x 可插拔系统风扇

1 x 电源按钮开关

1 x VGA 接口

内存

支持 DDR4 ECC / REG 内存，可达 512G 容量

存储单元

1 x 2.5 寸免工具拆卸硬盘

1 x M.2(SATA) 接口的 SSD

电源输入

800W 1+1 CRPS 冗余电源 (8 扩 )

550W 1+1 CRPS 冗余电源 (4 扩 + 硬盘 )

环境

工作温度 : 0℃ ~ 40℃

储存温度 : -20℃ ~ 75℃

相对湿度 : 10%~90%( 无凝结 )
