GNS-1101

基于Intel C236平台，板载6电4光的1U/2U网安整机

产品型录

产品介绍
产品规格
档案下载

基于GNS-2101主板的1U/2U网安整机

产品概述:

Intel C236芯片平台，具有更快的内存性能和扩展支持，集成的先进技术，具有高安全性和高可靠性。

平台集成了6个千兆以太网管理口和2个前置扩展网卡接口，内置1个PCIe x8扩展插槽，可插RAID卡做磁盘阵列或客户卡，双通道DDR4-2400 ECC/Non-ECC DIMM插槽，可支持64GB内存，6个标准SATA 3.0接口，1个mSATA，1个CF卡插槽，1个LPC接口，可支持TPM2.0卡，1个VGA接口，2个内置USB 3.0 Pinheader，2个USB2.0，1个RJ45 CONSOLE调试口，1个内置串口，1个液晶屏等。

主要特点:

◆ 采用Intel C236架构，1U/2U 机架式网安平台

◆ 支持Intel 6/ 7 gen. Core/Xeon/ Pentium处理器

◆ 支持DDR4 2400 ECC & REG，可达64GB

◆ 支持2个前置网络模块插槽

◆ 板载6个RJ45 GbE LAN & 4个SFP GbE LAN

◆ 支持3组Bypass

主板型号	GNS-2101
	支持 6th/ 7th gen. Intel Xeon/Core/Pentium 处理器
	Intel C236 chips
内存	4条DDR4 2400 memory DIMM，支持 ECC/non-ECC memory，可支持 64GB
LAN	网卡芯片: Intel i210-AT/ i350-AM4
	支持 10/100/1000/10G link speed
	LAN Bypass: 3 pairs
前面板I/O 接口	Power status/HDD status/STA Led/bypass status LEDs
	2 x USB 2.0 ports
	1 x RJ45 type console port
	6 x copper LAN ports & 4 x SFP LAN Ports
	2 x LAN Module Slot

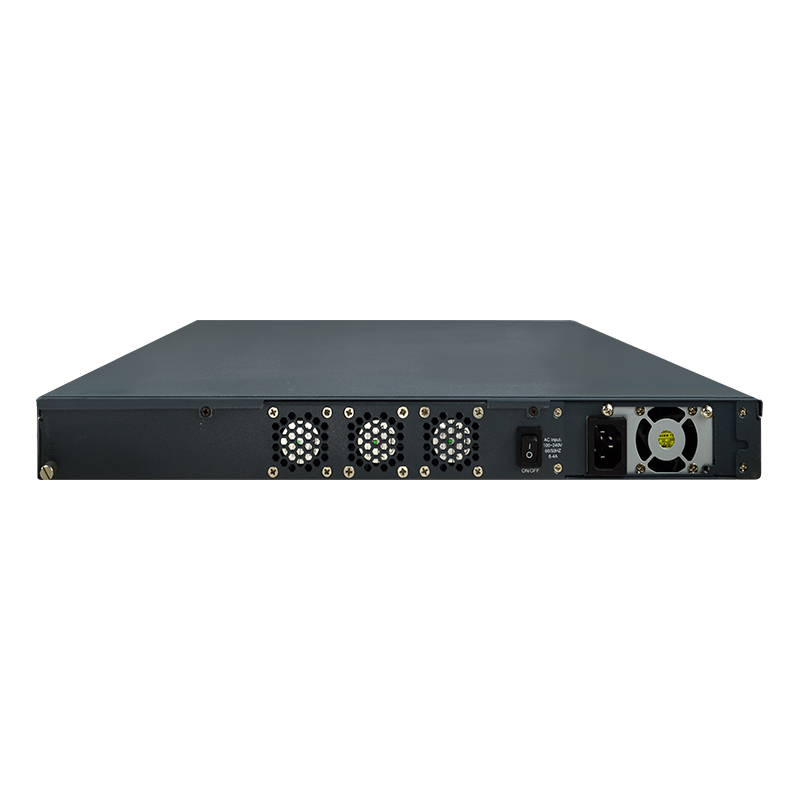

后面板I/O 接口	1 x AC Power Port
后面板I/O 接口	1 x Power button switch
存储	2 x SATA
存储	1 x CF & 1 x mSATA(co-layout)
电源输入	ATX power supply 350W
体积	Chassis dimension : 435mm x 575mm x 44mm
重量	Without packing: 5.2Kg
重量	With packing: 8Kg
工作环境	工作温度: 0℃ ~ 40℃
	存储温度: -20℃ ~ 75℃
	湿度: 10% ~ 90% non-condensing
