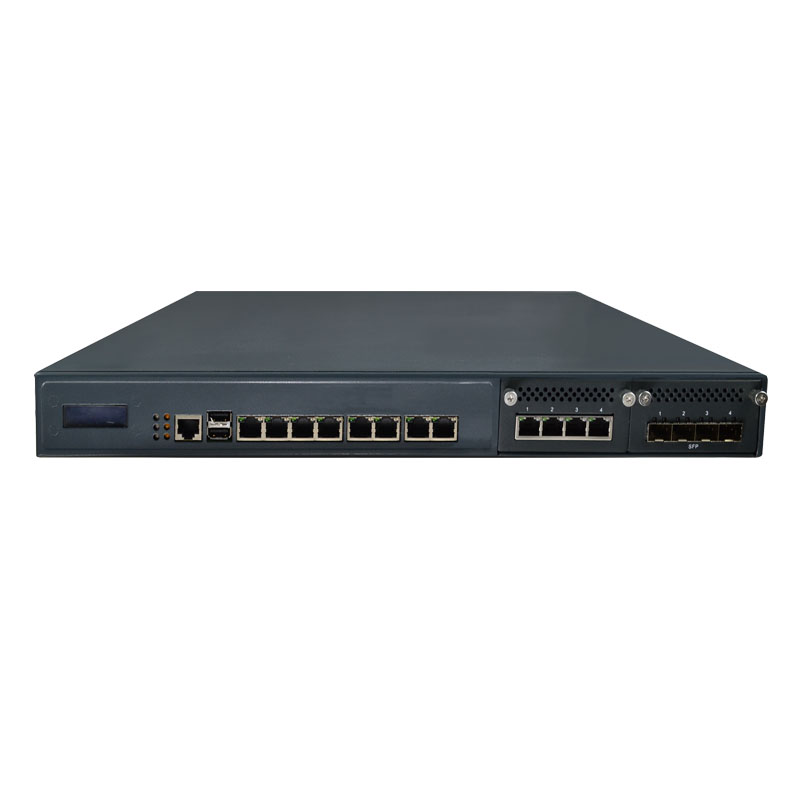

GNS-1104

采用 Intel C236 架构，1U / 2U 机架式网安平台

支持 Intel 6th，7th Core / Xeon / Pentium 处理器

支持 DDR4 2400 ECC & REG，可达 64GB

支持 2 个前置网络模块插槽

板载 6 个 RJ45 千兆电口 & 2 个 Combo口(可选2电或2光）

支持 3 组 Bypass

内置扩展可灵活配置 PCIe x4 或 PCIe x8

产品型录

产品介绍
产品规格
档案下载

产品概述：

Intel C236 芯片平台，具有更快的内存性能和扩展支持，集成的先进技术，具有高安全性和高可靠性。平台集成了 6 个千兆 RJ45 电口和 2个Combo口(可选2电或2光），2 个前置扩展网卡接口，内置 1 个 PCIe x8 扩展插槽，可插 RAID 卡或其他客户卡，双通道 DDR4-2400 ECC/Non-ECC DIMM 插槽，可支持 64GB 内存，3 个标准 SATA 3.0 接口，1 个 mSATA，1 个 miniPCIe接口，1 个 LPC 接口可支持 TPM2.0 卡，1 个 VGA+HDMI 接口，2 个 USB3.0 Header，1 个 RJ45 CONSOLE 调试口，1 个内置串口，1 个液晶屏等。

主要特点：

采用 Intel C236 架构，1U / 2U 机架式网安平台
支持 Intel 6th，7th Core / Xeon / Pentium 处理器
支持 DDR4 2400 ECC & REG，可达 64GB
支持 2 个前置网络模块插槽
板载 6 个 RJ45 千兆电口 & 2 个 Combo口(可选2电或2光）
支持 3 组 Bypass
内置扩展可灵活配置 PCIe x4 或 PCIe x8

处理器系统	Intel® Skylake-S Series platform 6th Core i7/i5/i3 processors
内存	4 个DIMM 插槽，支持Un-buffered / Non-ECC, ,DDR4 2400MHz memory：最大可支持64GB内存
LAN	板载6个千兆电口i211-AT，2 Combo(2光/2电) 电口支持3组BYPASS 2个前置扩展可支持4光/4电/8光/8电/2万兆光/4万兆光等扩展网卡
I/O 前面板接口	Power status/HDD status/STA Led/bypass status 指示灯 2 个 USB 3.0 接口 1 个 RJ45 串口 6 个千兆 RJ45 电口，2 Combo(2光/2电) 2 个前置扩展网卡接口
扩展接口	1个TPM接口 1个PMBUS接口内置1个PCIEx16接口，可作为前置2扩展内置1个PCIE x4（4x信号）接口内置1个PCIE x4（2x信号）接口内置1个 miniPCIe接口内置2组8位的GPIO控制插针

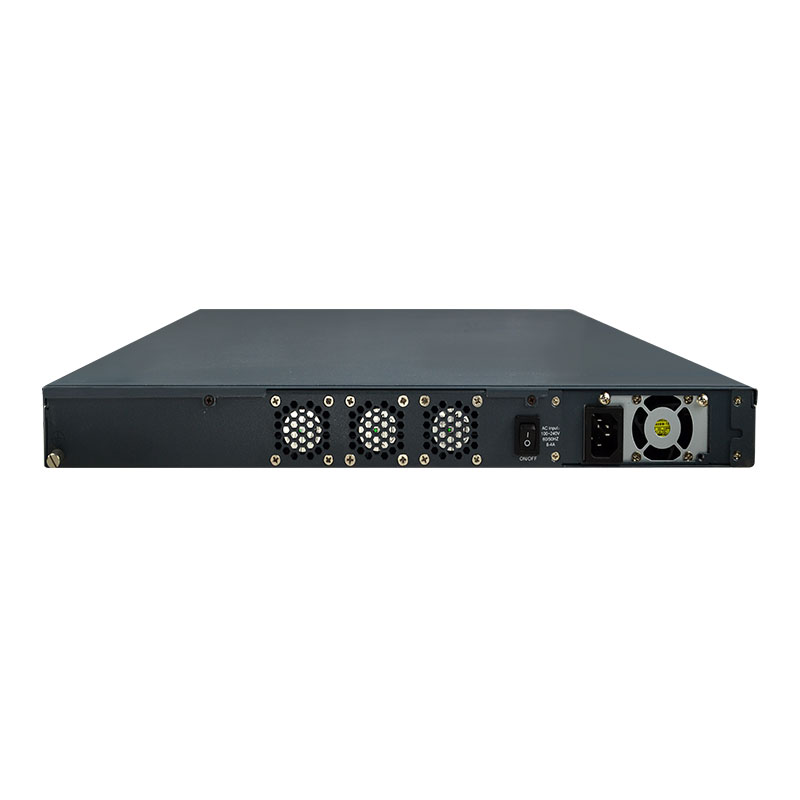

I/O 后面板接口	1 个电源按钮开关 1/2 个外接电源输入接口支持1 个VGA 接口
存储单元	1个mSATA接口 3个SATA3.0接口
电源输入	1U单电、冗电 2U冗电 ATX 24Pin+8Pin
环境	工作温度 : 0℃ ~ 45℃ 储存温度 : -40℃ ~ 70℃ 相对湿度 : 10%~90%( 无凝结 ) 支持1U/2U
