GNS-1102

基于Intel C236平台，板载6电4光2扩的1U/2U网络安全计算机

产品型录

产品介绍
产品规格
档案下载

产品概述

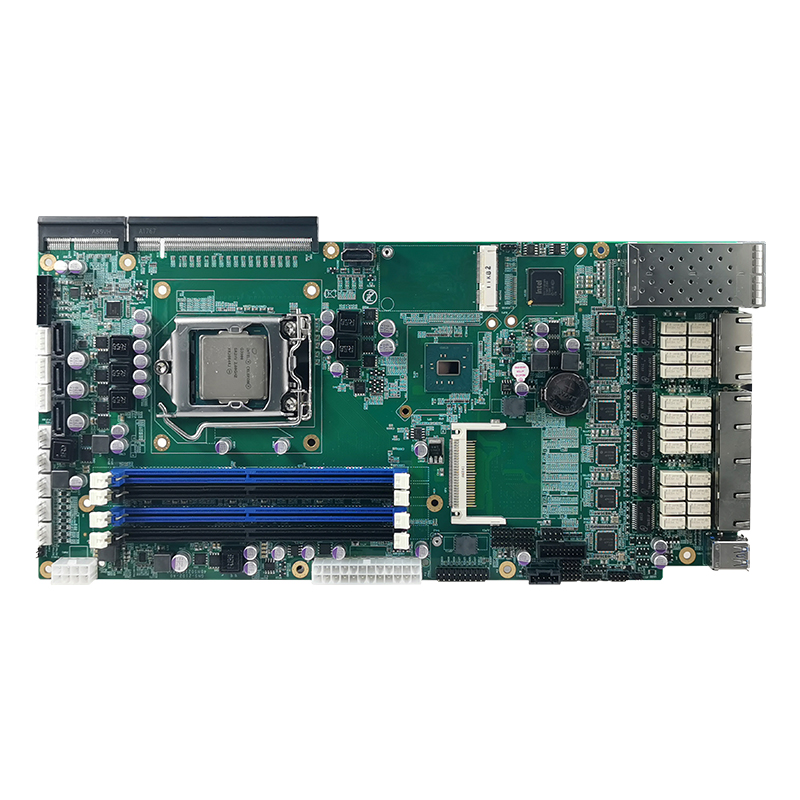

搭载Intel C236 芯片，集成了6个千兆 RJ45电口和4 个千兆光口，2个前置扩展网卡接口，内置1个PCIe x8扩展插槽，可插 RAID卡或其他客户卡，双通道 DDR4-2400 ECC/Non-ECC DIMM 插槽，可支持 64GB内存，3 个标准 SATA 3.0 接口，1 个 mSATA，1 个 CF 卡插槽，1 个 LPC 接口可支持 TPM2.0 卡，1 个 VGA+HDMI 接口，2 个内置 USB 3.0 Pinheader，2 个 USB2.0，1 个RJ45 CONSOLE 调试口，1 个内置串口，1个液晶屏等。

主要特点

◆ 采用 Intel C236 架构，1U / 2U 机架式网安平台

◆ 支持 Intel 6th，7th Core / Xeon / Pentium 处理器

◆ 支持 DDR4 2400 ECC & REG，支持可达 64GB内存容量

◆ 支持 2 个前置网络模块插槽

◆ 板载 6 个 RJ45 千兆电口 & 4 个 SFP 千兆光口

◆ 支持 3 组 Bypass

◆ 内置扩展可灵活配置 PCIe x4 或 PCIe x8

CPU	支持 Intel 6th/ 7thCore / Xeon / Pentium 处理器 Intel C236 chips
内存	4 条DDR4 2400 memory DIMM，支持 ECC/ non-ECC memory，可支持到64GB
LAN	网卡芯片 : Intel i210-AT/ i350-AM4 支持 10/100/1000/10G link speed LAN Bypass: 3 pairs

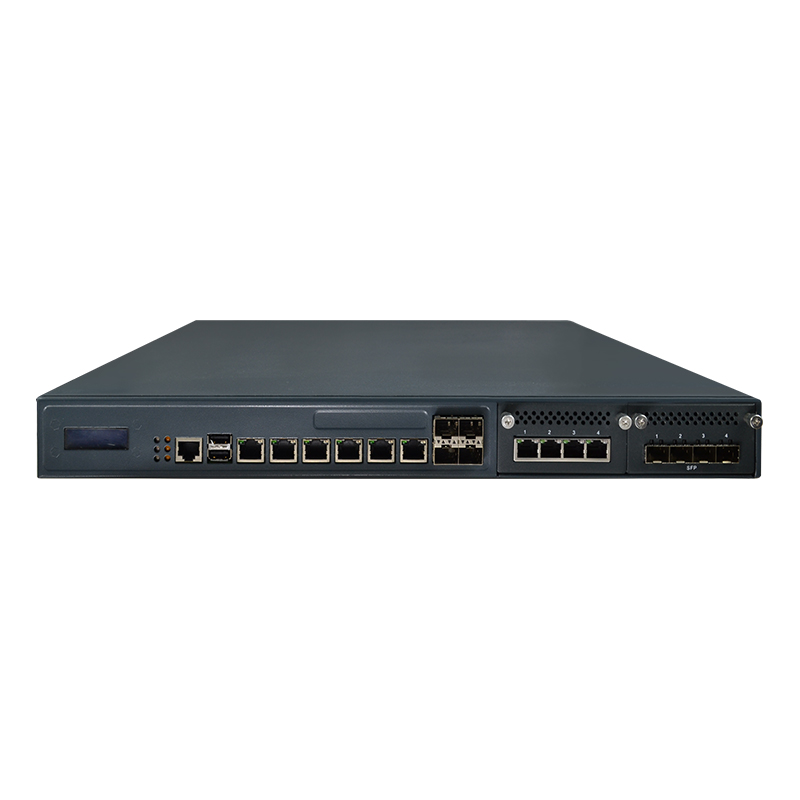

前面板 I/O 接口	Power status/HDD status/STA Led/bypass status LEDs 2 个USB 2.0 接口 1 个RJ45 串口 6 个千兆RJ45 电口，4个千兆SFP 光口 2 个前置扩展网卡接口

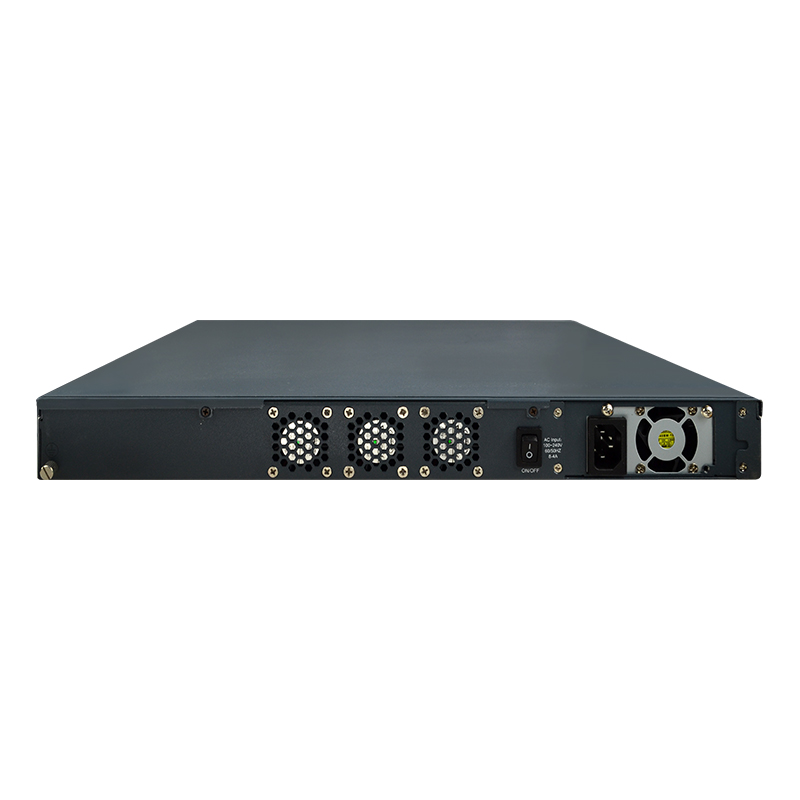

后面板 I/O 接口	1/2 个外接电源输入接口 1 个电源开关按键
存储	3 个SATA 3.0 接口 1 x CF & 1 x mSATA(co-layout)
电源输入	支持单电250W，冗电350W
工作环境	工作温度 : -10℃ ~ 45℃ 存储温度 : -20℃ ~ 75℃ 湿度 : 10% ~ 90% non-condensing
外观尺寸	560mm x 435mm x 44mm（长 x 宽 x 高）
