GNS-1160

基于Intel C246平台、支持可信、IPMI、6电4光，高性能的1U/2U网安整机

产品型录

产品介绍
产品规格
档案下载

基于Intel C246平台、支持可信、IPMI、6电4光，高性能的1U/2U网安整机

产品概述：

GNS-1160平台集成6个千兆以太网电口和4个千兆以太网光口，3组Bypass，平台可支持达128G内存，4个SATA3.0接口，1个CF卡，1个miniPCIe接口，1个支持可信华泰TPCM可信卡的M.2接口，预留SODIMM DDR4插槽可以扩展IPMI功能，平台支持2个PCIe 8x前置扩展插槽，内置2个USB3.0 Pinheader，2个USB2.0插针，1个内置串口等。

主要特点：

◆ 支持Intel 8th/9th Core/Xeon系列CPU

◆ 支持DDR4 2666，可支持到128G内存

◆ 支持IPMI2.0

◆ 支持可信华泰TPCM可信卡及TPM2.0可信卡

◆ 板载2个PCIe X8插槽，灵活选择

◆ 用于网关、防火墙、IPS、IDS、APT等网安平台场景中

主板型号	GNS-2160
处理器系统	采用Intel C246 平台，支持 Core 8th/ 9th/Xeon /Pentium 系列CPU
内存	DDR4 DIMM Socket ×4 可支持到128G
扩展	前置2个扩展网卡接口，内置2个PCIex8，可二选一，1个M.2支持可信华泰的TPCM卡
串口	海岸线RJ45型串口，数据类型RS232，预留On-Board 2*5pin Header for COM2
USB	2个USB3.0前置，内置2个USB3.0 Pinheader，2个USB2.0插针

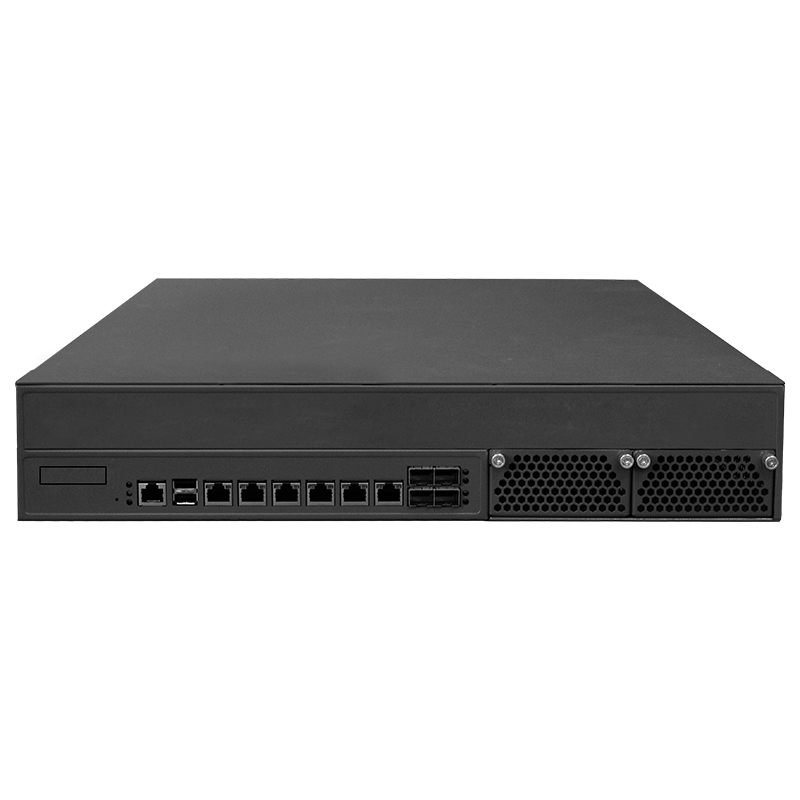

前面板I/O接口	PWR/SYS/STA灯，3组Bypass灯
	1个RJ45串口
	2个USB2.0接口
	6个RJ45千兆网口
	4个SFP千兆光口
	2个前置网络扩展卡接口

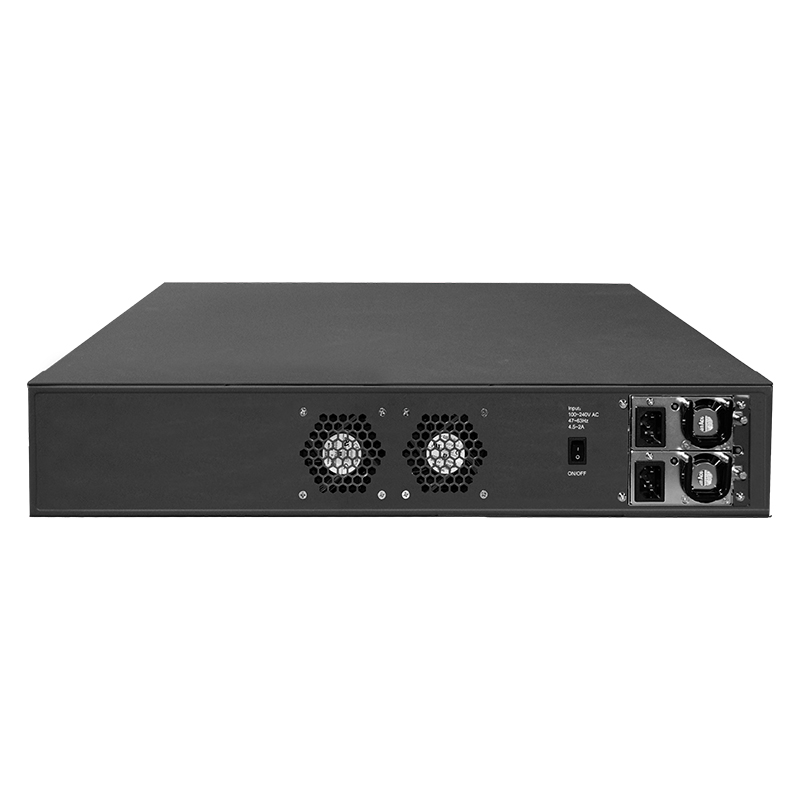

后面板I/O接口	1个电源开关按键
后面板I/O接口	1/2个外接电源输入接口
以太网口	板载6个RJ45千兆电口，带有3组bypass功能
以太网口	板载4个SFP千兆光口
存储	4个SATA 3.0接口 1个mSATA接口与CF共LAYOUT
电源	单电250W 冗电350W
操作系统	支持开源操作系统如centos，ubantu，redhat等，也可以支持国产化操作系统，如凝思
工作环境	工作温度 0℃~ 45℃，5% ~ 95%RH（无凝结）
工作环境	存储温度-40℃~70℃，5% ~ 95%RH（无凝结）
外观尺寸	560mm x 435mm x 89mm（长x宽x高）
