GNS-1411

基于海光3系CPU、支持可信计算、带IPMI接口的6电4光2扩的1U/2U网安整机

产品型录

产品介绍
产品规格
档案下载

基于海光3系CPU、支持可信计算、带IPMI接口的6电4光2扩的1U/2U网安整机

产品概述

GNS-1411兼容海光三号CPU，平台集成6个千兆以太网电口和4个千兆以太网光口，3组Bypass，网卡芯片采用网讯芯片，提高自主可控。平台可支持到128G内存，3个SATA3.0接口，1个CF 卡，1个Mini PCIe 接口，1个M.2接口，预留SODIMM DDR4插槽可以扩展IPMI功能，平台支持2个PCIe 8x前置扩展插槽，内置2个USB3.0 Pinheader，1个USB2.0插针，1个内置串口等。

主要特点

◆ 支持海光二号CPU及海光三号CPU

◆ 预留 SODIMM DDR4 插槽，可以扩展 IPMI 功能

◆ 平台高计算性能、高内存带宽、高I/O带宽，应用广泛

◆ 支持国产或开源系统，windows、麒麟、普华、凝思、方德、CentOS、ubuntu 等

处理器系统	海光2号/3号系列CPU
内存	2通道，4条DIMM，可支持到128G
扩展	2个USB 3.0，板内预留双排插针
	2个PCIe 8x的内置扩展插槽，二选一可插客户卡
	1个Mini PCIe接口，可插4G/WIFI模块或Mini PCIe显卡
	1个20 Pinheader，支持TCM1.0、TPM2.0卡

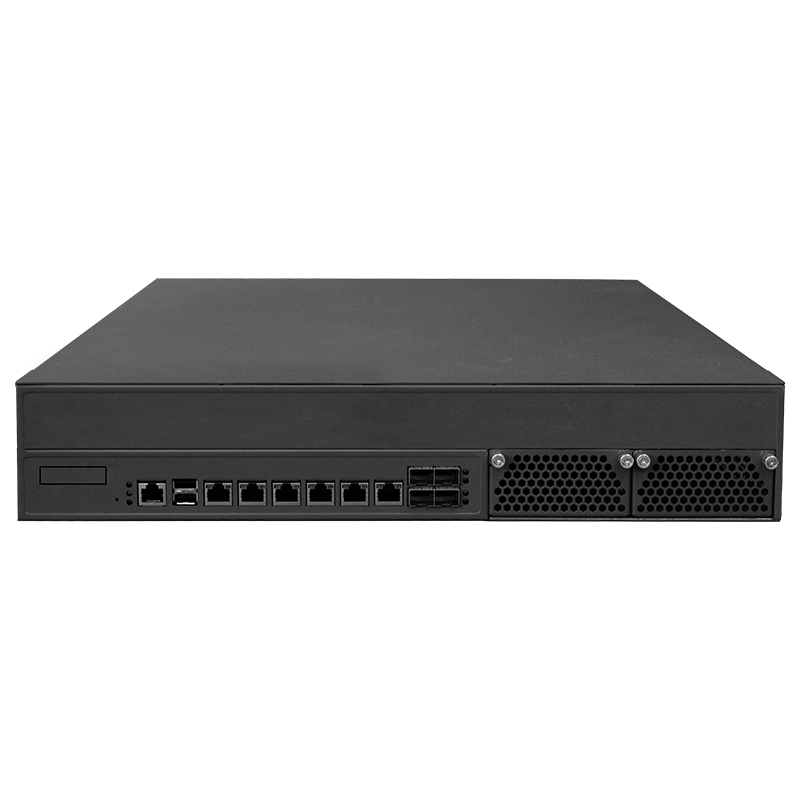

前面板I/O接口	PWR/SYS/STA灯，3组Bypass灯
	1个RJ45串口
	2个USB2.0接口
	6个RJ45千兆网口，含1个IPMI 管理口
	4个SFP千兆光口
	2个前置网络扩展卡接口

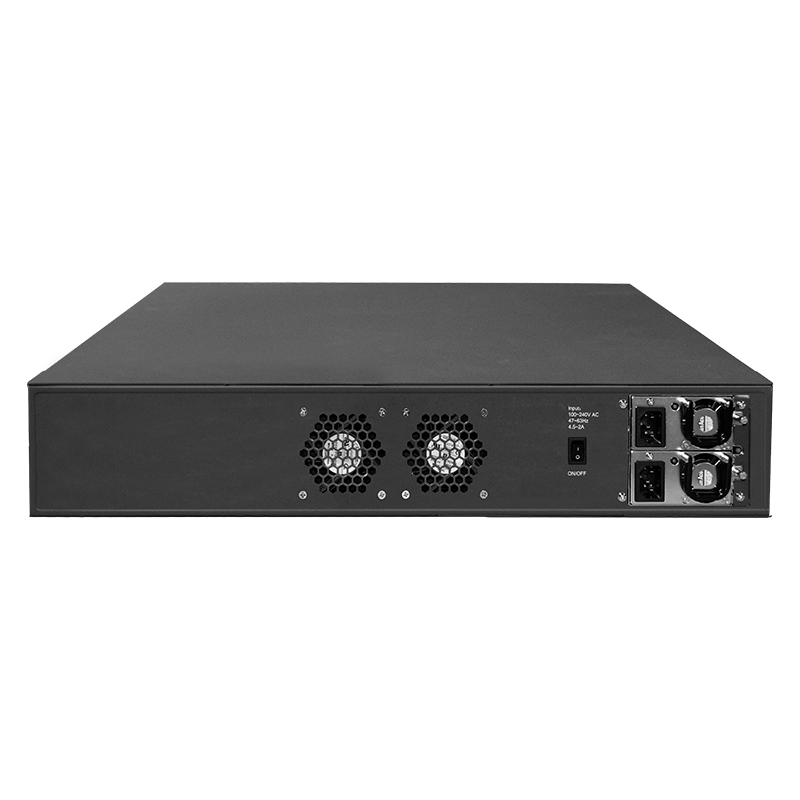

后面板I/O接口	1个电源开关按键
后面板I/O接口	1/2个外接电源输入接口
以太网口	板载6个RJ45千兆电口，带有3组bypass功能
	板载4个SFP千兆光口
	网卡芯片：网迅WX1860A2/WX1860/A4支持10/100/1000MB
存储	2个7-pin SATA3.0 接口
存储	1个CF卡接口，IDE总线，1×Compact Flash Type II插槽
电源	单电/冗电
操作系统	支持开源操作系统如centos，ubantu，redhat等，也可以支持国产化操作系统，如凝思
工作环境	工作温度-10℃ ~ 45℃
	存储温度-40℃ ~ 70℃
	0% ~ 90%相对湿度，无凝露
外观尺寸	560mm x 440mm x 89mm（长x宽x高）

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
