GNS-141A-WZ

基于海光 3 系 CPU、支持可信计算、8个前置扩展插槽的2U网闸

产品型录

产品介绍
产品规格
档案下载

基于海光 3 系 CPU、支持可信计算、8个前置扩展插槽的2U网闸

产品概述

GNS-141A-WZ 基于海光二号CPU系列，兼容海光三号CPU，平台集成2个于兆RJ45管理口，支持前置4/8扩或4扩4硬盘，2 个SATA3.0接口，1个 Mini PCle 接口，2 个堆叠 USB3.0，内置 USB3.0 Pin header，1 个 RJ45 串口及内置串口。

主要特点

支持海光二号 CPU 及海光三号 CPU
CPU内置安全芯片配合定制化BIOS，实现安全可信
板载 2 千兆电 RJ45 管理接口，支持 4/8 前置扩展网卡模块
板载 4 条 DDR4 UDIMM 插槽，可支持到128GB 内存容量
计算访存、能效比、数据库等测试性能突出的平台
平台高计算性能、高内存带宽、高I/O 带宽，应用广泛，移植性好，兼容性好
完善的生态链，可支持国产或开源系统，windows、麒麟、普华、凝思、方德、CentOS、ubuntu 等

处理器	海光3系2号/3号系列 CPU
内存	2 通道，4 条 DIMM，可支持到128G
扩展	1 个 USB 2.0/3.0，板内预留双排插针 1 个 PCIe 8x 的内置扩展插槽，二选一可插客户卡 1 个 20 Pinheader，支持大唐高鸿可信软件的TPM卡 1 个 Mini PCIe接口，可插国密卡或Mini PCle显卡及客户卡

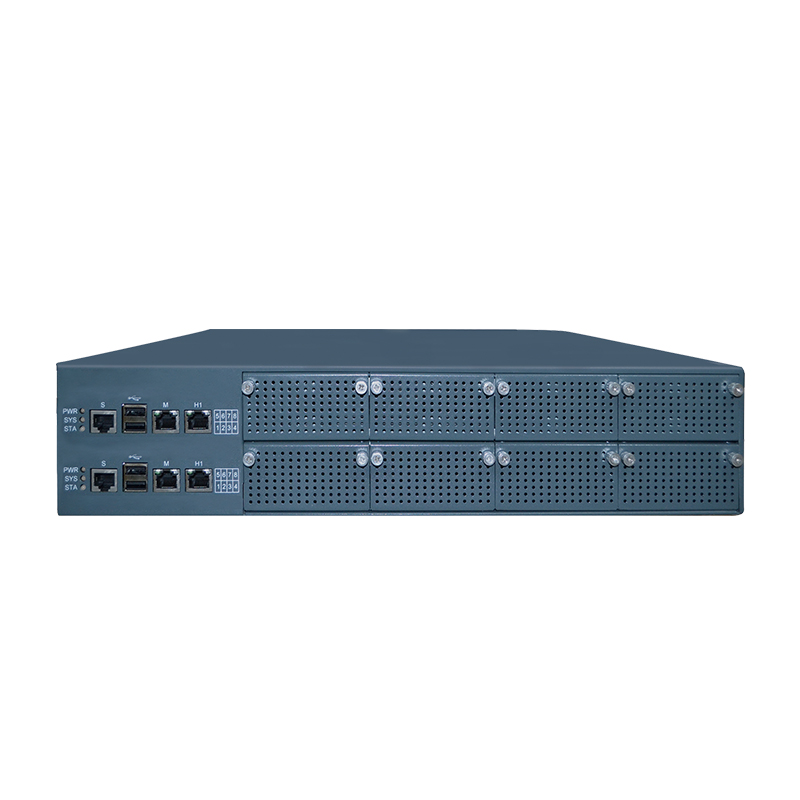

前面板 I/O 接口	PWR/SYS/STA灯，3组Bypass灯 1 个 RJ45串口 2 个 USB2.0/3.0接口 2 个 RJ45千兆管理网口 4/8个前置网络扩展卡接口

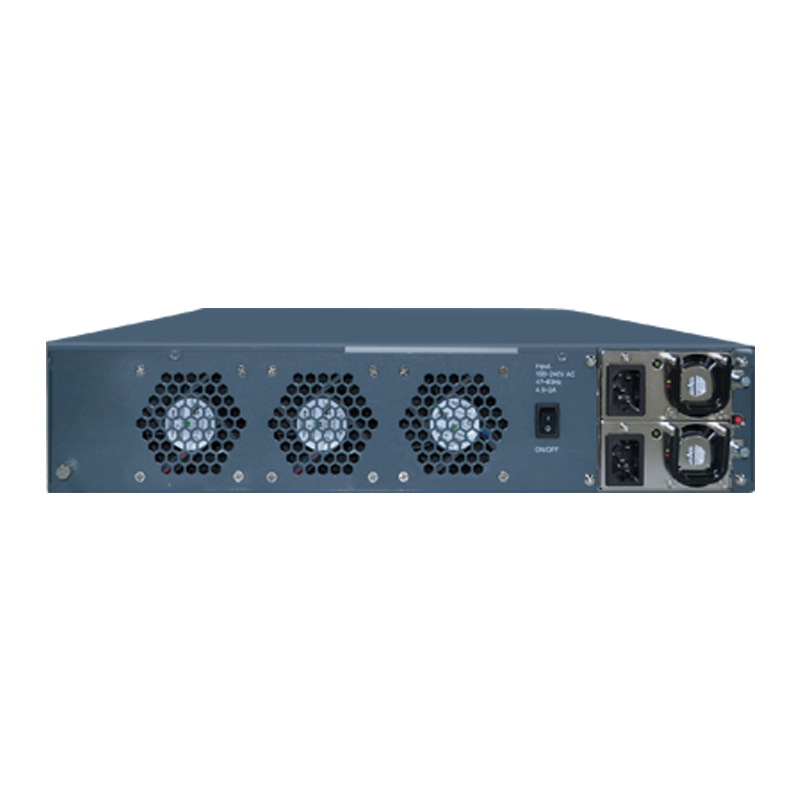

后面板 I/O 接口	1个电源开关按键 1/2个外接电源输入接口
以太网口	板载2个RJ45千兆管理电口前置扩展可支持4/8个扩展网卡模块
存储	2个7-pin SATA3.0接口
电源	单电/冗电
操作系统	支持开源操作系统如centos、ubantu、redhat 等，也可以支持国产化操作系统，如 UOS、麒麟、凝思等
工作环境	工作温度 0℃ ~ 60℃ 存储温度 -40℃ ~ 70℃ 相对湿度：0% ~ 90% 无凝露
外观尺寸	560mm x 440mm x 89mm（长 x 宽 x 高）

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
