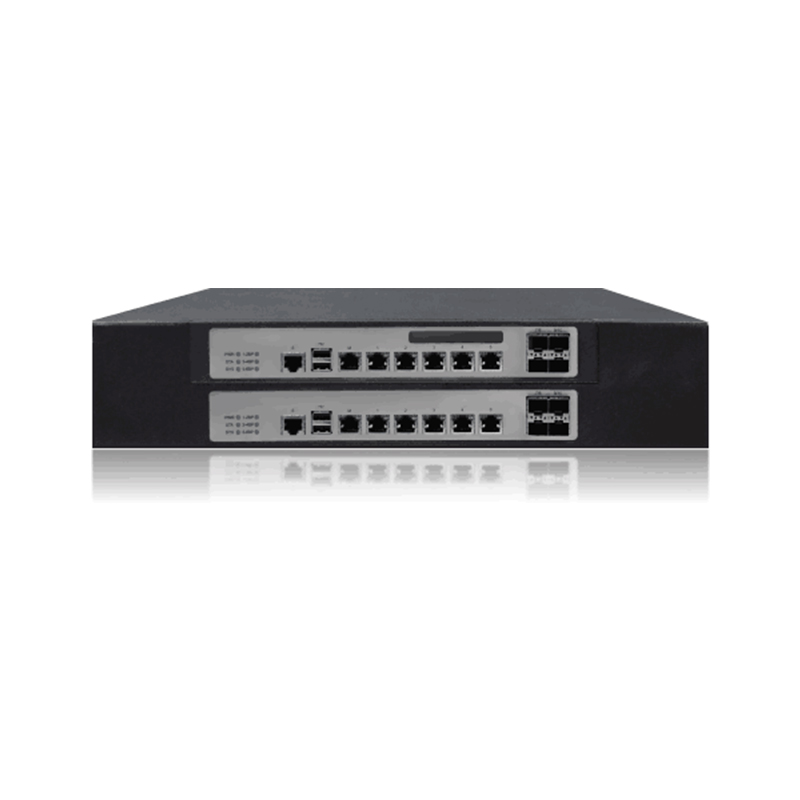

GNS-1411-WZ

基于海光3系CPU、支持可信计算、带IPMI接口的6电4光2扩的2U网闸

产品型录

产品介绍
产品规格
档案下载

基于海光 3 系 CPU、支持可信计算、带 IPMI接口的 6 电 4 光的 2U 网闸

产品概述

GNS-1411 兼容海光三号 CPU，平台集成 6 个千兆以太网电口和 4 个千兆以太网光口，3 组 Bypass，网卡芯片采用网讯芯片，进一步提高自主可控。平台可支持到128G 内存，3 个 SATA3.0 接口，1 个 CF 卡，1 个 Mini PCIe 接口，1 个 M.2 接口，预留 SODIMM DDR4 插槽可以扩展 IPMI 功能，平台支持 2 个 PCIe 8x 前置扩展插槽，内置 2个 USB3.0 Pinheader，1 个 USB2.0 插针，1 个内置串口等。

主要特点

◆ 国产化 X86 平台支持海光二号 CPU 及海光三号 CPU

◆ 丰富的 I/O 接口，可灵活选择和搭配

◆ 预留 SODIMM DDR4 插槽，可以扩展 IPMI 功能

◆ 平台计算性能、高内存带宽、高I/O 带宽，应用广泛，兼容性好

◆ 支持国产或开源系统，windows、麒麟、普华、凝思、方德、CentOS、ubuntu 等

处理器系统	海光2号/3号系列CPU
内存	2通道，4条DIMM，可支持到128G
扩展	2个USB 3.0，板内预留双排插针
	2个PCIe 8x的内置扩展插槽，二选一可插客户卡
	1个20 Pinheader，支持TCM1.0、TPM2.0卡
	1个Mini PCIe接口，可插4G/WIFI模块或Mini PCIe
前面板I/O接口	PWR/SYS/STA灯，3组Bypass灯
	1个RJ45串口
	2个USB2.0接口
	6个RJ45千兆网口，含1个IPMI管理口
	4个SFP千兆光口
	2个前置网络扩展卡接口
后面板I/O接口	1个电源开关按键
后面板I/O接口	1/2个外接电源输入接口
以太网口	板载6个RJ45千兆电口，带有3组bypass功能
	板载4个SFP千兆光口
	网卡芯片：网迅WX1860A2/WX1860/A4支持10/100/1000MB
存储	2个7-pin SATA3.0 接口，标准接口定义
存储	1个CF卡接口，IDE总线，1×Compact Flash Type II插槽
电源	单电/冗电
操作系统	支持开源操作系统如centos，ubantu，redhat等，也可以支持国产化操作系统，如凝思
工作环境	工作温度：0℃ ~45℃
	存储温度：-40℃ ~ 70℃
	0% ~ 90%相对湿度，无凝露
外观尺寸	560mm x 440mm x 89mm（长x宽x高）
