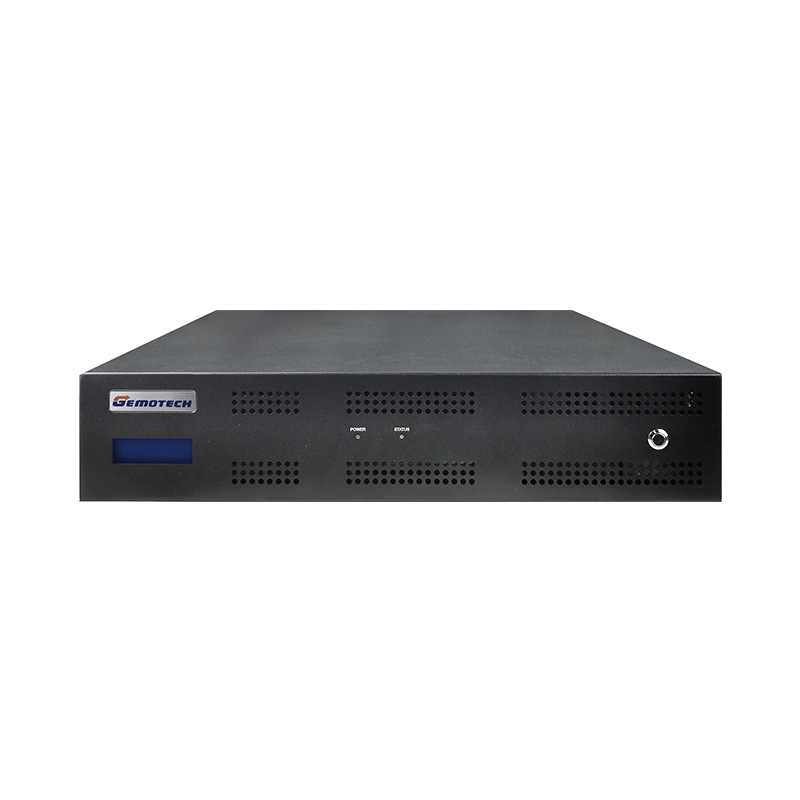

GNS-1424

基于海光5系 / 7系双路CPU，2电口，IPMI接口，支持6个PCIe设备的2U网安整机

产品型录

产品介绍
产品规格
档案下载

产品概述

海光5000系列处理器、兼具计算及扩展能力，支撑政务、企业、运营商、金融、交通等行业数据中心等业务应用。双路5/7系产品，根据处理器型号不同，物理核心数可实现16核、32核，满足双路产品计算力和性能应用，适应数据中心不断更新变化的需求，实现资源与成本平衡。

主要特点

◆ 国产化 x86 平台，支持双路海光 2/3 号 5/7 系 CPU

◆ 16 条 DDR4 RDIMM 插槽，3200MT/s

◆支持2U 6扩展标准 PCIe 接口

◆ PCIex16，充份释放扩展性能

◆丰富的 IO 接口，可灵活选择和搭配

◆ 3 个 miniSAS HDD 8643，2 个 Slim SAS

主板型号	GNS-2424-01
处理器系统	双路海光Dhyana 2/3号5/7系处理器
内存	16条DDR4 RDIMM，3200MT/s
LAN	板载2个千兆管理电口 ,intel i210芯片板载1个IPMI 接口 6个标准PCIe 扩展插槽，可扩展4电/4光/2万兆/4万兆等网卡
扩展接口	6个标准 PCIe4.0扩展插槽，其中3个PCIex16, 3个PCIex8
前面板 I/O接口	支持2x16个字符LCD模块 PWR电源状态/HDD状态电源开关键复位键
后面板 I/O接口	1个DB9 串口，4个USB3.0接口 2个RJ45千兆电口 1个IPMI管理口 1个VGA 接口
存储	3个miniSAS HDD 8643 4个SATA 接口 2个Slim SAS，支持可达4个NVME
电源	单电、冗电 ATX 24Pin+8Pin电源模块
操作系统	支持麒麟系统，UOS，开源系统等
工作环境	工作温度 : 0℃ ~ 40℃ 存储温度 : -40℃ ~ 70℃ 相对湿度 : 10%~90%( 无凝结 )
外观尺寸	580mm×435mm×88mm（长 x 宽 x 高）
