GNS-141A

基于海光 3 系 CPU、支持可信计算、8个前置扩展插槽的2U网安计算机

产品型录

产品介绍
产品规格
档案下载

产品概述

GNS-141A 基于海光二号 CPU 系列，兼容海光三号 CPU，平台集成 2 个千兆 RJ45 管理口，支持前置 4/8 扩或 4 扩4硬盘，2个SATA3.0 接口，1个Mini PCle 接口，2个堆叠 USB3.0，内置USB3.0 Pinheader，1个RJ45 串口及内置串口。

主要特点

◆ 支持海光二号CPU及海光三号CPU

◆ 内置 1个TPM 2.0 接口，实现安全可信

◆ 板载2 千兆电RJ45管理接口，支持4/8前置扩展网卡模块

◆ 板载4条DDR4 UDIMM 插槽，可支持到128GB内存容量

◆ 计算访存、能效比、数据库等测试性能突出平台

◆ 平台高计算性能、高内存带宽、高I/0 带宽，应用广泛

◆ 支持国产或开源系统，windows、麒麟、普华、凝思、方德、CentOS、ubuntu 等

处理器	海光3系2号/3号系列CPU
内存	2 通道，4 条 DIMM，可支持 128G
扩展	1 个 USB 2.0/3.0，板内预留双排插针 1 个 PCIe 8x 的内置扩展插槽，二选一可插客户卡 1 个 20 Pinheader，支持TPM2.0可信卡 1 个 Mini PCIe 接口，可插国密卡或 Mini PCle 显卡及客户卡

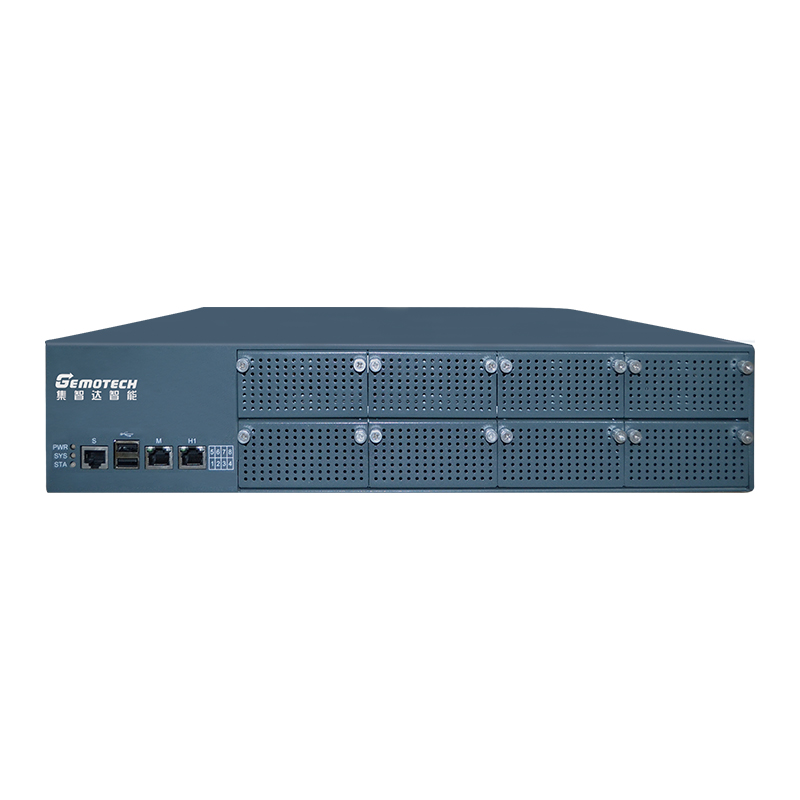

前面板I/O接口	PWR/SYS/STA灯，3组Bypass灯 1个RJ45串口 2个USB2.0/3.0接口 2个RJ45千兆管理网口 4/8个前置网络扩展卡接口

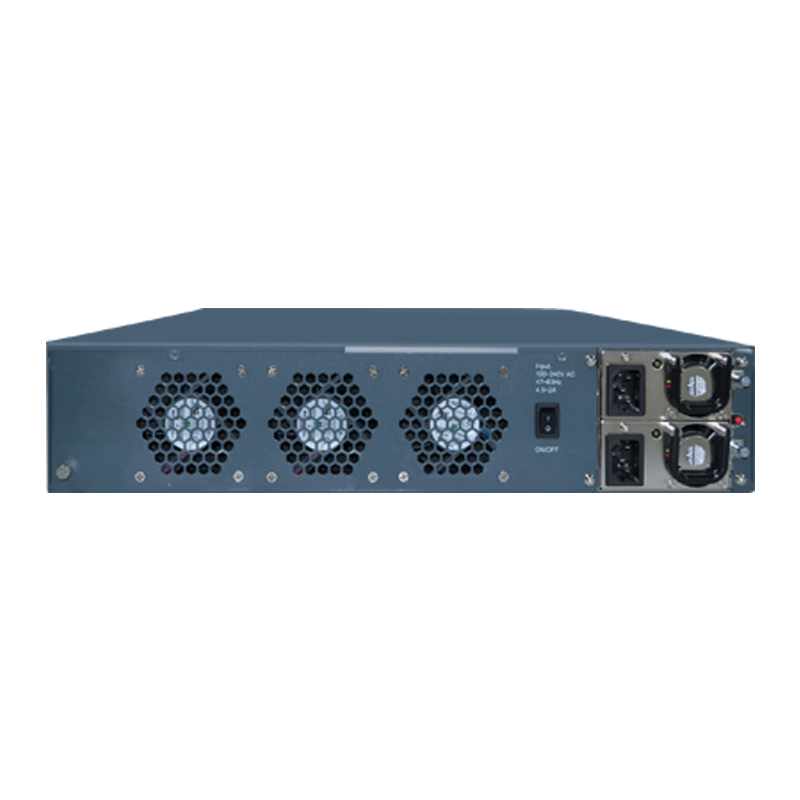

后面板I/O接口	1个电源开关按键 1/2个外接电源输入接口
以太网口	板载2个RJ45千兆管理电口前置扩展可支持4/8个扩展网卡模块
存储	2个7-pin SATA3.0接口
电源	单电/冗电
操作系统	支持开源操作系统如 centos、ubantu、redhat等，也可以支持国产化操作系统，如UOS、麒麟、凝思等
工作环境	工作温度 0℃ ~ 45℃ 存储温度 -40℃ ~ 70℃ 0% ~ 90% 相对湿度，无凝露
