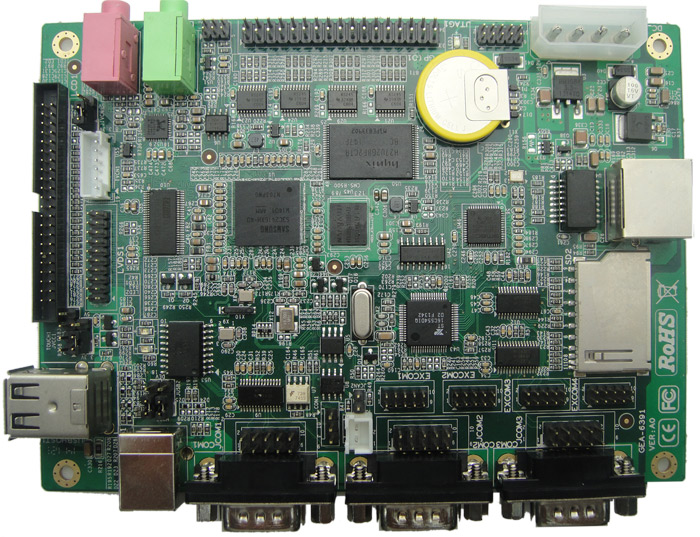

GEA-6391 主板

主要特点：

- 三星S3C2416 处理器

- 主频400MHz

- 128MB SDRAM

- 128MB NandFlash

- LVDS: 1024*768

产品型录

产品介绍
产品规格
档案下载

GEA-6391 主板

操作系统	WinCE6.0/Linux
CPU/GPU	三星S3C2416 处理器
内存	128Mbyte DDR
存储	EMMC/Inandflash/nandflash	128MByte EMMC/nandflash
	SD/TF	一个SD/MMC 接口支持32GByte
显示	LVDS		支持 TFT 1024*768
	TTL		支持 TFT 1024*768
RJ45 网络	10/100BPS
USB	Host		2
	DEVICE		1 个，DEVICE 与HOST 共用一个USB, 跳线选择
串口	RS232		6 个三线RS232,1 个485，3 个在海岸线( 海岸线接口与pin 插针做共lay)
现场局域总线	CANBus( 选配）		1
加密	128bit,IIC 总线接口
JTAG 调试接口	JTAG 调试接口
GPIO	40 个，3.3V
麦克风	ok
扬声器	支持耳机即可
电池	支持RTC 供电
电源	ATX DC5V 100MA
外观尺寸	145mm × 102mm
海岸线布局	保持和LT-2410C_V64G 一致
工作温度	-20~75℃
工作湿度	工作湿度20%~90%
电源	电压/ 电流或宽压范围		电压/ 电流或宽压范围
设计寿命	3 年
