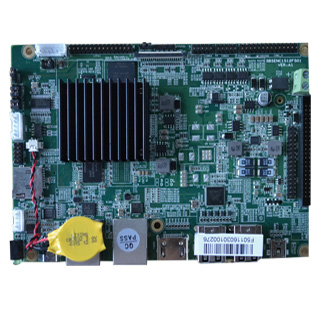

GEA-6303A

产品特点

◆ 采用Freescale基于ARM Cortex-A9架构的高扩展性多核系列应用处理器

◆ 2个RS232、4个RS232/RS485可选、 2个网口、 4个USB接口、2路SPI、38路通用输入输出口等

◆ 支持mini-PCIE模块

◆ 内建RTC和Watchdog

◆ 支持12VDC或24VDC电源输入

产品型录

产品介绍
产品规格
档案下载

产品特点

◆ 采用Freescale基于ARM Cortex-A9架构的高扩展性多核系列应用处理器

◆ 2个RS232、4个RS232/RS485可选、 2个网口、 4个USB接口、2路SPI、38路通用输入输出口等

◆ 支持mini-PCIE模块

◆ 内建RTC和Watchdog

◆ 支持12VDC或24VDC电源输入

功能		描述
处理器系统	CPU	板载Freescale I.MX6 系列, 双核/ 四核
内存	技术架构	板载1G DDR3
网络	控制器	千兆网络，2*RJ45接口
硬件检测	看门狗定时器	0~255 秒，提供看门狗例程
存储	EMMC	8G EMMC
	SD	支持启动功能的SDIO
	板载接口	复位、电源开关
输入/输出接口	串口	COM0 debug 调试口2 个RS232 串口以及4 路RS232/RS485
	USB	1 路USB OTG,4 路USB HOST
	CAN	1 路CAN 接口
	HDMI	1路
显示	LVDS LCD	双通道24 位18bit TTL LCD
显示	触摸屏	4 线电阻触摸屏
其他性能参数
电源	电源类型	DC 12V 输入，支持电源反向及过压保护
		电源接口5.08mm 凤凰头
	电源功耗	＜. 8 W
单板工作环境	工作温度	-20℃ ~ 70℃
	存储温度工作湿度	-40℃ ~ 80℃ 0% ~ 90% 相对湿度, 无凝露
	存储湿度	0% ~ 90% 相对湿度, 无凝露
外观尺寸	尺寸重量	146*101mm 0.2kg
认证		FCC, CE, ROHS 标准
扩展接口	数量	备注
USB	1
USB	1
SPI	2	可根据需要扩展USB、串口、WIFI、GPS 、
GPIO	32	CAN、3G、AD、DA、GPIO等
SDIO	2
PWM	2
