GEA-6702

产品特点

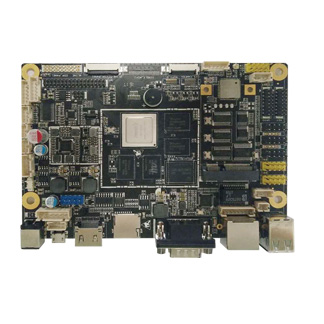

◆ 基于RK3288主板

◆支持Android5.1操作系统

◆支持3G/4G，WIFI、蓝牙无线传输

◆支持双屏异显

◆支持4K高清播放

产品型录

产品介绍
产品规格
档案下载

产品特点

◆ 基于RK3288主板

◆支持Android5.1操作系统

◆支持3G/4G，WIFI、蓝牙无线传输

◆支持双屏异显

◆支持4K高清播放

功能		描述
处理器系统	CPU	RK3288 CORTEX -A17 四核 ,主频1.8G
内存	技术架构	2GB DDR3，1066MHz
网络	有线网络	1 路10/100/1000M 以太网
	WIFI+ 蓝牙模块	2.4GWIFI 模块，支持蓝牙4.0
	3G/4G	MINI PCIE
存储	EMMC TF	EMMC 8/16GB 可选1个TF座
串口	COM0	DEBUG 口
	COM1	1*RS232 DB9
	COM2-4(TTY02-04)	3*RS232 4PIN 2.0
USB	USB2.0	4路
	OTG	1路
	HDMI	HDMI1.4A 标准，可传输音频, 支持下080P 显示
	LVDS LCD	24 位双通道
音频	接口	MIC/ 耳机
RTC		a) 可设定的系统RTC，精度要求：误差小于±3. 秒/ 月
		其他性能参数
电源	电源类型	DC 12V 输入，支持电源反向及过压保护
		采用4PIN 航插并保留共LAYOUT4PIN WAFER
	电源功耗	待实际板测量
单板工作温度	工作温度	-10℃ ~ 60℃
	存储温度	-40℃ ~ 80℃
	工作湿度	0% ~ 90% 相对湿度, 无凝露
	存储湿度	0% ~ 90% 相对湿度, 无凝露

Driver

日期	说明	版本	操作系统	下载

Manual

日期	说明	版本	操作系统	下载
