GEA-6306

Cortex-A9四核处理器,2G内存,16G EMMC

主要特点：
- Cortex-A9四核处理器
- 2G内存
- 16G EMMC
- 3个COM口,4个USB
- 3G或4G,WIFI,2个网口
- Mini PCI-E插槽

产品型录

产品介绍
产品规格
档案下载

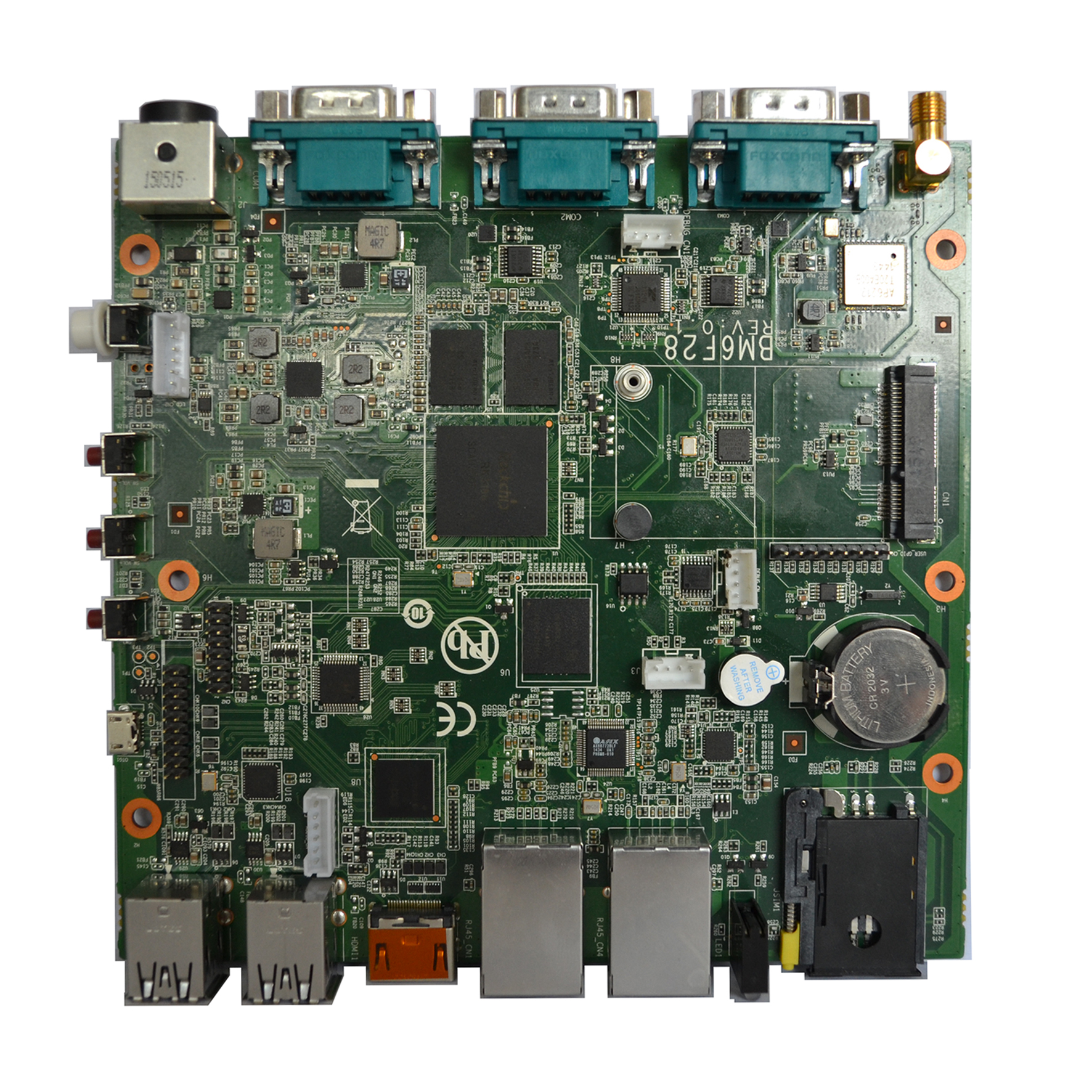

GEA-6306

功能		描述
主板尺寸		145x150mm
处理器		Rockchip RK3188 Cortex-A9四核处理器
内存		2G DDR3
存储		16G EMMC SanDisk
插槽	Mini PCI-E x1 (Black)	1x1
I/O 接口后面板	COM	3个RS232串口
	HDMI Out	1个HDMI显示
	Audio Jack	1x1
	USB2.0	4个USB2.0
	LAN (RJ-45)	2个RJ45网口
	DC-IN	12V DC IN
	SIM	1个SIM卡插槽
	按键	音量+、音量-、电源开关、维护开关
	天线	WIFI天线、3G天线
	micro USB	1个Micro USB接口
LED 显示	user-defined	1x1
	3G	1x1
	Wifi	1x1
Header	VGA	1x1
	COM2	1x1
	Audio	1x1
	LVDS	1x1
	HSIC	1x1
	DEBUG	1x1
USB 2.0 hub	IC Name	SMSC USB2514BI-AEZG-TR
LAN	IC Name	REALTEK RTL8201F-VB-CG
	Speed	10/100M
	WLAN	BT+wifi module onboard
3G Module	Module Name	优尚 U8300C
WIFI+BT Module	Module Name	正基 AP6212
Other	蜂鸣器	yes
Other	MIC	yes
