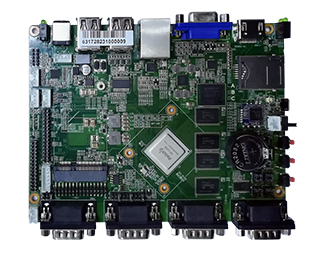

GEA-6317

Rk3288系列四核ARM Cortex-A17架构CPU
  3个RS232、1个RS232/RS422/RS485可选
  1个千兆网、5个USB接口
  HDMI，VGA，LVDS 显示
  支持Mini-PCIE模块
  2W@8欧姆功放输出
  8GB/16GB MLC eMMC电子盘
  支持12VDC电源输入

产品型录

产品介绍
产品规格
档案下载

GEA-6317主板特点：

Rk3288系列四核ARM Cortex-A17架构CPU

3个RS232、1个RS232/RS422/RS485可选

1个千兆网、5个USB接口

HDMI，VGA，LVDS 显示

支持Mini-PCIE模块

2W@8欧姆功放输出

8GB/16GB MLC eMMC电子盘

支持12VDC电源输入

处理器	CPU	板载ARM Cortex-A17 四核1.8GHz CPU
内存	技术架构	板载2G/1G可选 DDR3
网络通信	3G/4G通信	支持联通、移动和电信3G/4G通信模块，Mini-PCIe接口
	WIFI&蓝牙	RTL8723模块，支持IEEE 802.11b/g/n WLAN
	WIFI&蓝牙	蓝牙4.0双模式，同步LE和BR /功能
硬件监测	看门狗	0~255秒，提供看门狗例程
存储	EMMC	16G/8G EMMC
存储	扩展存储	支持启动功能的TF卡槽
输入/输出接口	串口	COM0调试串口
	串口	3个RS232串口，1个RS232/RS422/RS485可选
	USB	1个USB OTG
	USB	5个USB HOST
	CON1接口	1路I2C接口/1路SPI接口
		1路PWM输出
		12路GPIO和电源、GND
	按键	音量+/-
	按键	配置
	音频	2W@8欧姆功放输出
	音频	Line-OUT/MIC
	SIM卡槽	抽屉式卡槽
	SD卡槽	弹出式卡槽，可用于系统启动和数据存储
	Mini PCIE	仅支持USB信号的设备
	LED状态灯	电源指示灯/电子盘指示灯/WIFI指示灯/3G指示灯
显示	HDMI	HDMI1.4A，最大2K分辨率，支持声音输出
	LVDS	双通道24位，最大2K分辨率，背光板INVORT接口，支持PWM亮度调节
	VGA	最大2K分辨率
电源	电源类型	DC 12V输入，支持电源反向及过压保护
	电源类型	4PIN防呆电源接口；4PIN针信号复用，可接其它电源接口
	电源功耗	7.92W(Max)
工作环境	工作温度	-20℃ ~ 70℃
	存储温度	-40℃ ~ 80℃
	工作湿度	0% ~ 90%相对湿度, 无凝露
	存储湿度	0% ~ 90%相对湿度, 无凝露
执行标准	3C,FCC, CE, ROHS
